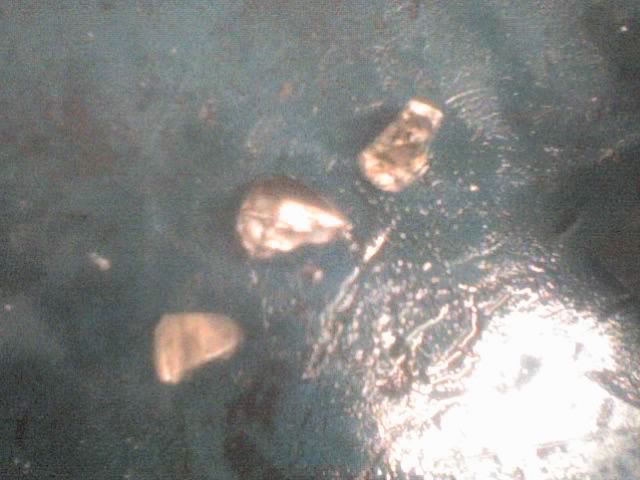

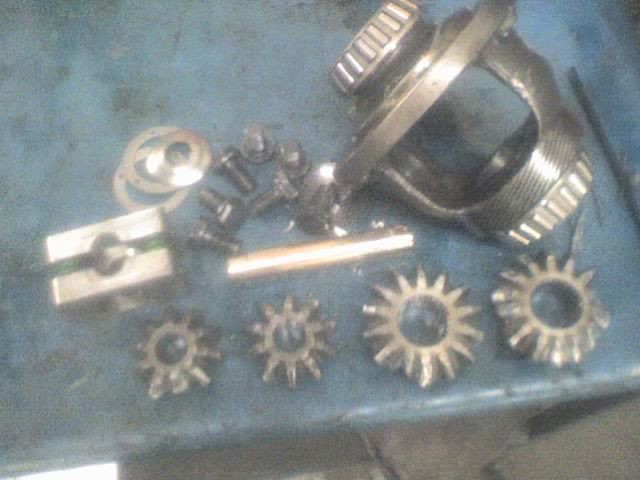

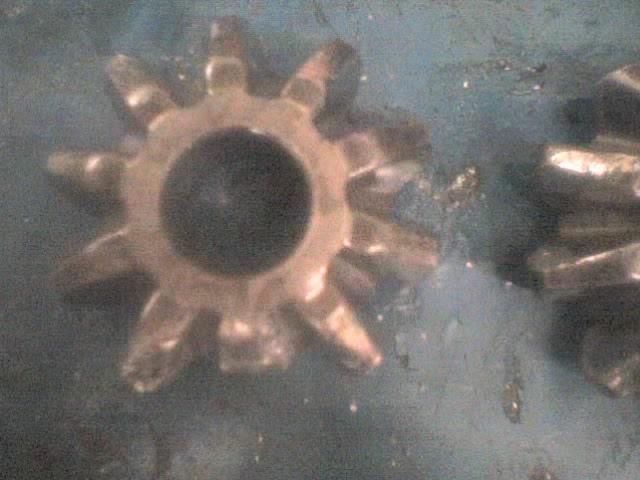

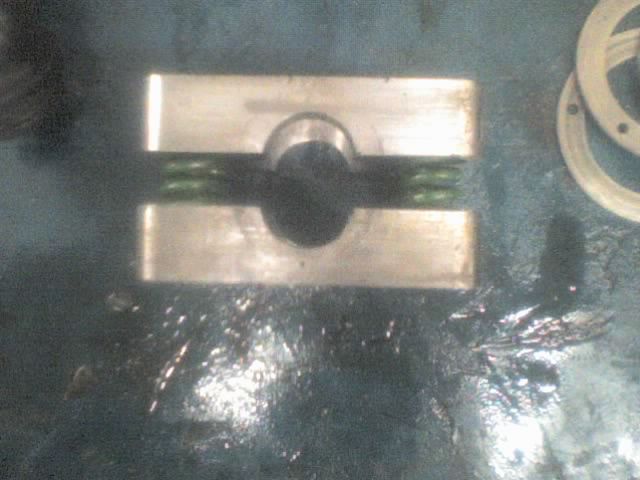

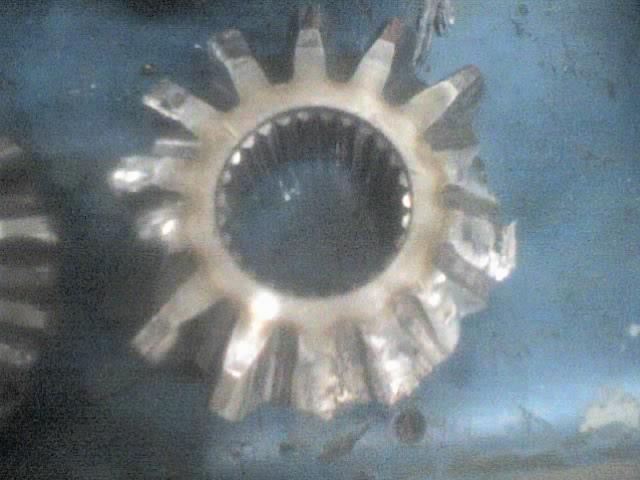

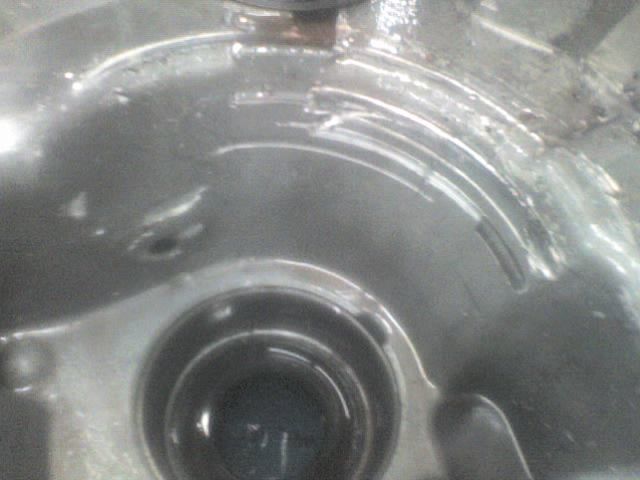

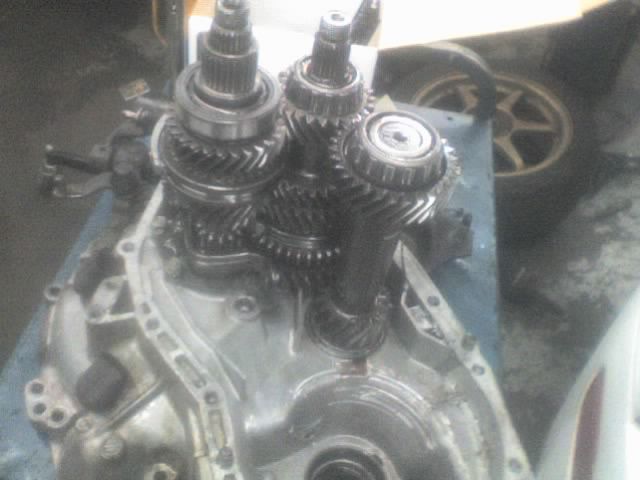

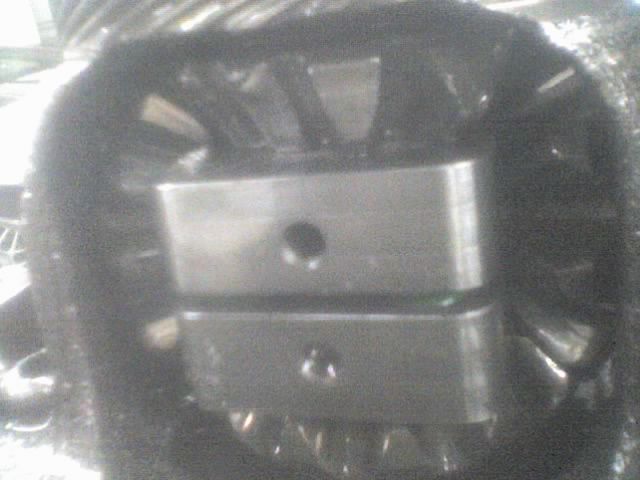

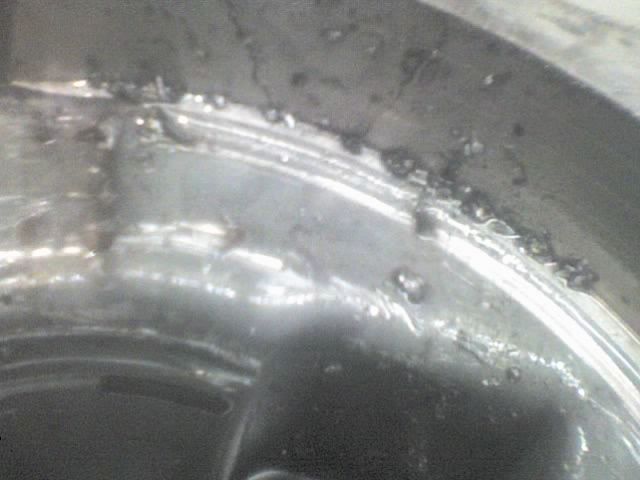

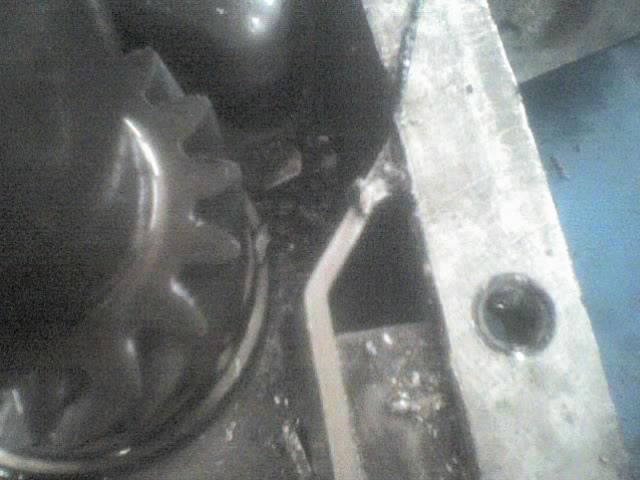

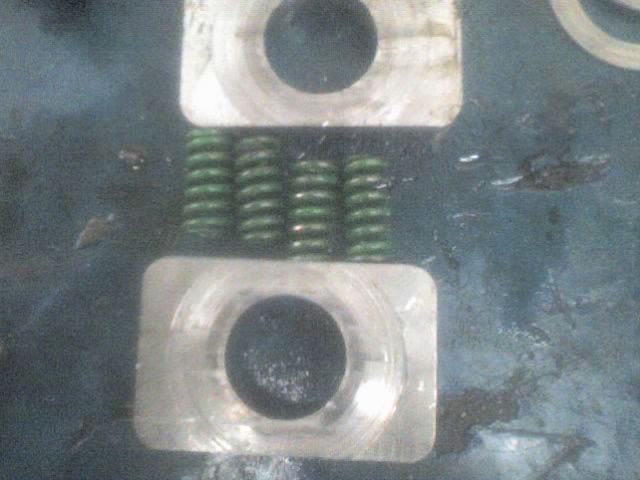

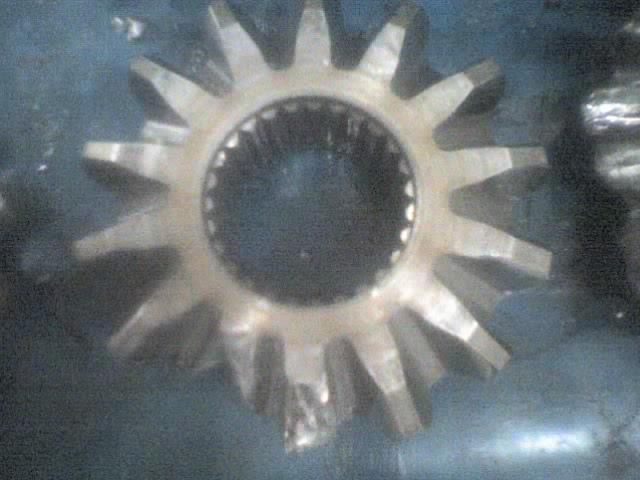

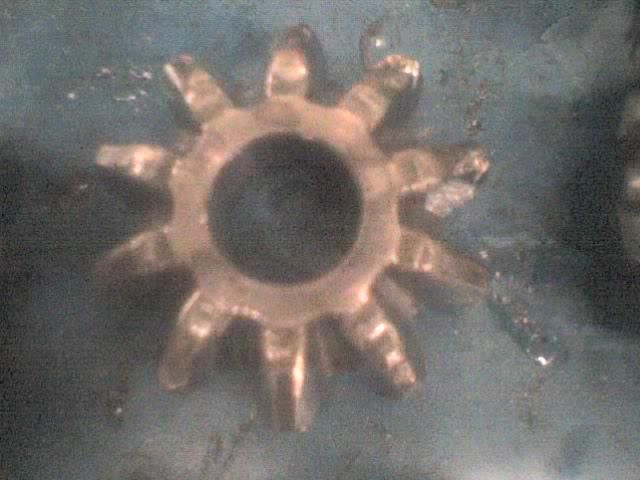

 Tranny rebuild! Well, its on its way to being done. I took the trans out and disected it monday. Tuesday, washing and inspecting everything, put together a new diff, and welding up the bell housing. There was also a hole in the diff housing part of the bell housing from a spider gear tooth punching through it. Today, re-assembled gear stacks, changed out the 3-4 shift fork because it had a stress crack, and put the stacks back in the housing. Attached ring gear to diff and put it all in the bell housing portion of the trans. Tomorrow will set diff preload, inputshaft endplay and intermediate shaft preload, seal it up and put it back together. Friday its going back in the car. Saturday...RACING IT!  Enjoy the pics              So the trans had one of those phantom grip differential inserts. NOT A REAL LSD. It does make both wheels spin though by putting pressure on the two spider gears that the axles go into, locking them together, forcing them to spin at the same speeds. Technically it is a LSD, Limited Slip Diff. It Limits slip between the two wheels until force can overcome the pressure binding the two spider gears. But it fails in the part that the abuse is still put on the stock spider gears in the diff so its just as strong as a stock diff only. My take on the insert, great for your average Joe not looking to make 300+hp trying to break into the mid 13's. 16G guys running 15psi, 14B and t-25 guys. AFC tuned with a pocket logger on 91. _________________1/4 ET-11.657@121.18mph w/ 1.682 60' 445whp/427tq on RRE Dyno All on 91 pump. Do you need your car tooned? Got some extra cash? PM me for details. I offer street and dyno tunes
|
| Thu May 07, 2009 12:57 am |

|
|
|
clockworktoy
Squish Face
Joined: Tue May 22, 2007 7:08 pm
Posts: 4327
Location: LBC
|
Re: Tranny rebuild! Looking good sam, maybe i should stop being lazy and fix my old tranny.
|
| Thu May 07, 2009 1:00 am |
|
|
|
amskater
Official Photographer
Joined: Wed May 23, 2007 5:00 am
Posts: 3726
Location: 626
|
Re: Tranny rebuild! damn sam your crazy and good luck
|
| Thu May 07, 2009 1:11 am |
|
|
|
christ
Goderator
Joined: Mon Jan 01, 1979 5:00 am
Posts: 5739
Location: D-Town
|
Re: Tranny rebuild! I kinda wanted to break it...oh well.
_________________
it is physically impossible to open your mouth and tilt your head back and forth at the same time.
|
| Thu May 07, 2009 9:30 am |
|
|
|
H8VTEC
Quagmire
Joined: Tue May 22, 2007 5:41 pm
Posts: 2343
Location: Alhambra
|
Re: Tranny rebuild! thats what i'm talking about! no putoing out! all over your lsd inserts.
_________________
Never buy a car you can't push
12.8 @ 109.75mph
|
| Thu May 07, 2009 9:37 am |
|
|
|
Illeagle
Talon of Doom
Joined: Wed May 23, 2007 10:07 am
Posts: 3615
Location: Long Beach
|
Re: Tranny rebuild! Done muthafuckas!! 4 Day tranny rebuild, drove it home last night.  _________________1/4 ET-11.657@121.18mph w/ 1.682 60' 445whp/427tq on RRE Dyno All on 91 pump. Do you need your car tooned? Got some extra cash? PM me for details. I offer street and dyno tunes
|
| Fri May 08, 2009 9:58 am |
|
|
|
turboawdfanatic
Moderator
Joined: Tue Aug 14, 2007 2:39 pm
Posts: 3013
Location: La Habra
|
Re: Tranny rebuild! Nice!
|
| Fri May 08, 2009 12:32 pm |
|
|
|
clockworktoy
Squish Face
Joined: Tue May 22, 2007 7:08 pm
Posts: 4327
Location: LBC
|
Re: Tranny rebuild! Good job sam, if i had a shop press then maybe i would try to rebuild mine ha.
|
| Fri May 08, 2009 3:40 pm |
|
|
|
ghetto_bird
The Don!
Joined: Sat Sep 15, 2007 9:18 pm
Posts: 1113
Location: south el monte
|
Re: Tranny rebuild!
|
| Sat May 09, 2009 9:27 am |
|
|
|
Illeagle
Talon of Doom
Joined: Wed May 23, 2007 10:07 am
Posts: 3615
Location: Long Beach
|
Re: Tranny rebuild! no...no lsd. Couldn't get the two halves to hold together to slide it into the diff. Plus it was kinda fubar'ed. Didn't want to shell out the $$ for a real LSD because I'm planning on moving to an AWD platform soon.
_________________1/4 ET-11.657@121.18mph w/ 1.682 60' 445whp/427tq on RRE Dyno All on 91 pump. Do you need your car tooned? Got some extra cash? PM me for details. I offer street and dyno tunes
|
| Sat May 09, 2009 3:24 pm |
|
|
|
DSM99
Moderator
Joined: Fri May 25, 2007 11:51 am
Posts: 3373
Location: The Bat-Cave
|
Re: Tranny rebuild! Nice! so did you end up running it at the track?
|
| Sun May 10, 2009 8:09 pm |
|
|
|
Illeagle
Talon of Doom
Joined: Wed May 23, 2007 10:07 am
Posts: 3615
Location: Long Beach
|
Re: Tranny rebuild! no, slept in ^_^
_________________1/4 ET-11.657@121.18mph w/ 1.682 60' 445whp/427tq on RRE Dyno All on 91 pump. Do you need your car tooned? Got some extra cash? PM me for details. I offer street and dyno tunes
|
| Sun May 10, 2009 11:06 pm |
|
|
|
DSM99
Moderator
Joined: Fri May 25, 2007 11:51 am
Posts: 3373
Location: The Bat-Cave
|
Re: Tranny rebuild! Are you goning to convert is to AWD or buy a GSX/TSI and drop your motor in it? because there is a GSX on the board that is getting parted out
|
| Mon May 11, 2009 12:29 am |
|
|
|
Illeagle
Talon of Doom
Joined: Wed May 23, 2007 10:07 am
Posts: 3615
Location: Long Beach
|
Re: Tranny rebuild! DEPENDS ON A FEW VARIABLES
